The MTK 180L can travel on the road without permits.
Maximum capacity of the MTK 180L is 180 ton.
The superstructure is operated through the truck’s PTO and can be mounted on most of truck brands available on the market (IVECO, Volvo, SCANIA, MAN, Astra, Mercedes...).
Semi-round telescopic boom made of Weldox (Strenx) steel. Six sections of which two independent hydraulic extensions, and three are synchronized. Total boom height from ground 40 m. Total height with lattice extension (13 m) 53 m.

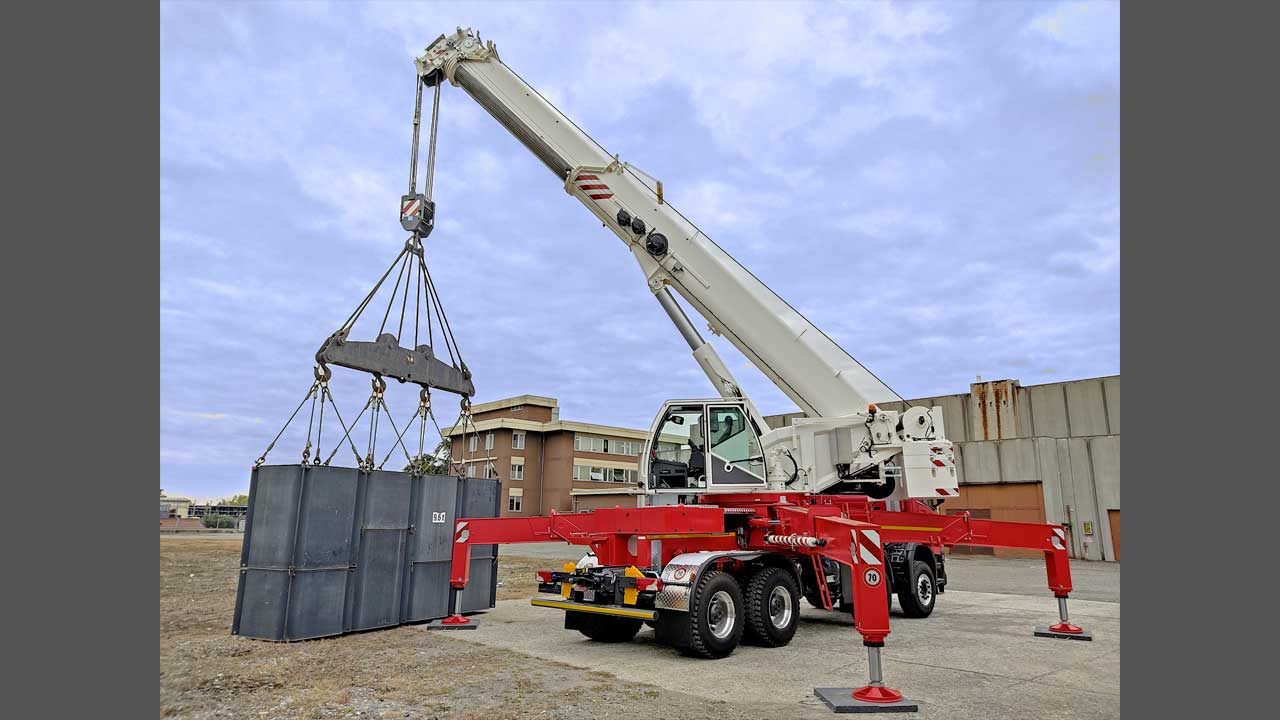

Four radial outriggers hydraulically operated both from the cabin and the two sides of the carrier. The controls are independent one from another. Partial stabilization is possible.
The crane is supplied with a 80 ton hook block and a counterweight of 15,9 ton in three pieces.
The crane’s cabin includes comprehensive instrumentation and controls for the crane and the full motion of the vehicle on site..
The installation on a commercial chassis empowers the solution, allowing reduced travel and maintenance costs and extended lifetime cycle.

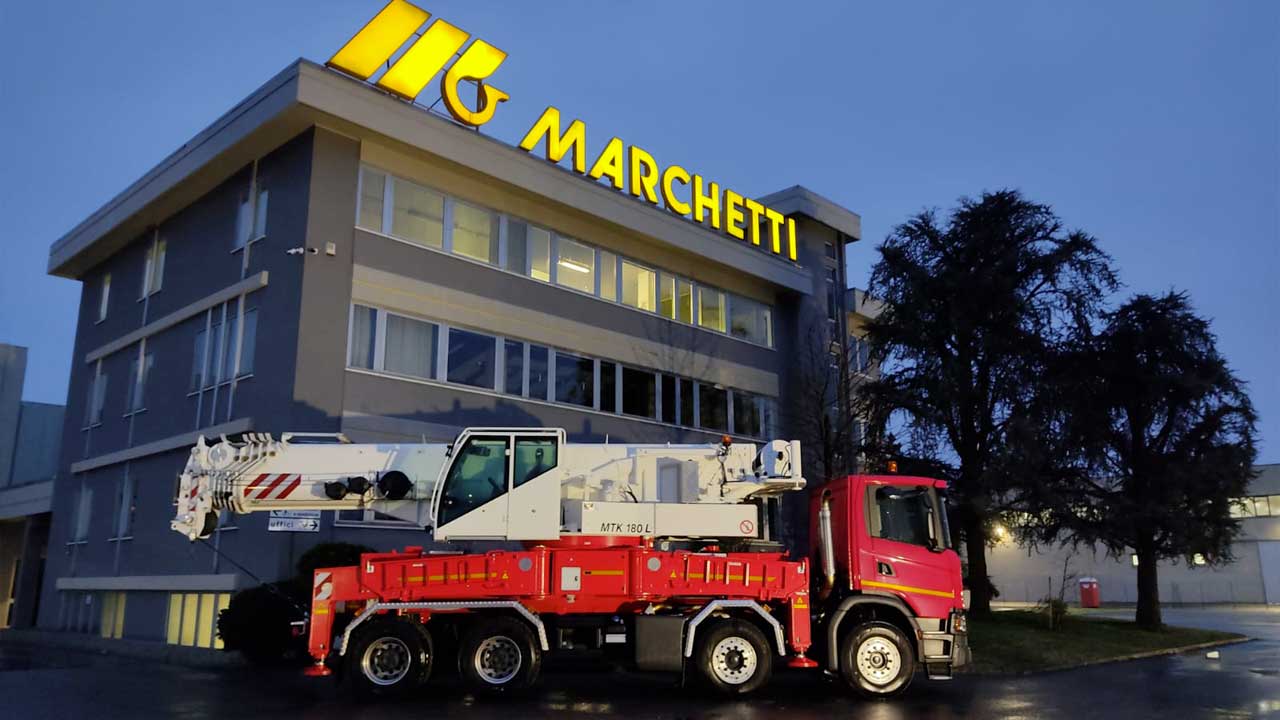

Marchetti Autogru Truck Mounted crane MTK 180L
LIFTING CAPACITY:
 180 ton
Max load moment: 400 tm

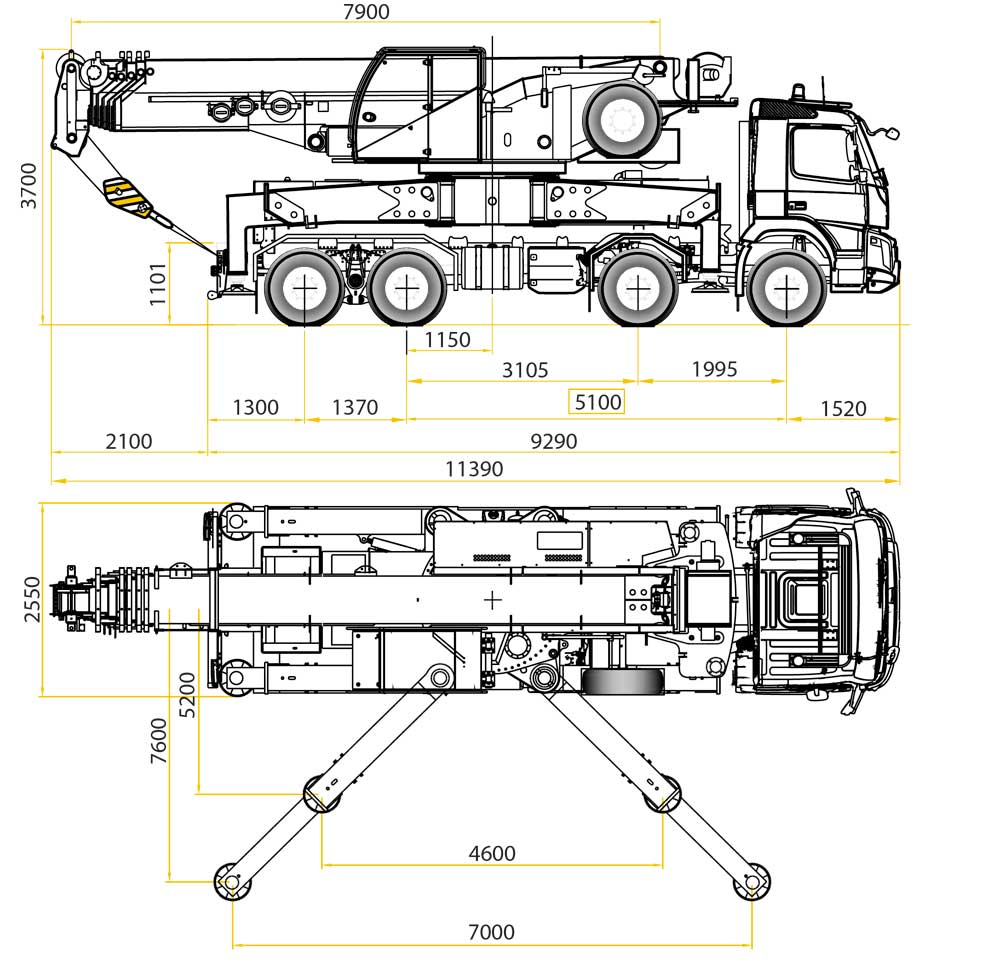

Telescopic boom: 7.9 to 36.3 m
Max height from ground: 40 m
Max height with jib: 53 m
Outriggers max footprint: 7.6 m x 7 m
OPTIONAL:

2nd winch:
7.1mm single folding jib:
7.1m to 13m double folding jib (0°/20°/40°):
Rear Pulling winch:
Remote controller:
Working Area Limiter:
Additional Heater A/C:
Further optional on request:
