CW 45.32L is designed for quick operativity on site.
The 4 sections boom design allows possibility to quickly operate multiple synchronized sections up to a max height of 34.5 m from ground in 90 sec only.
The single piece counterweight is designed to guarantee quick assembly on site and, in combination with variable width crawler carrier, allows a ground pressure level of only 0.6kg/cm2.
On other hand, the properly shaped 129kW engine, guarantees a 70% gradeability with full counterweight installed.
A comfortable tilting cab with adaptive seat and all necessary operator comforts complete the proposal of a crane suitable for multiple working situations.

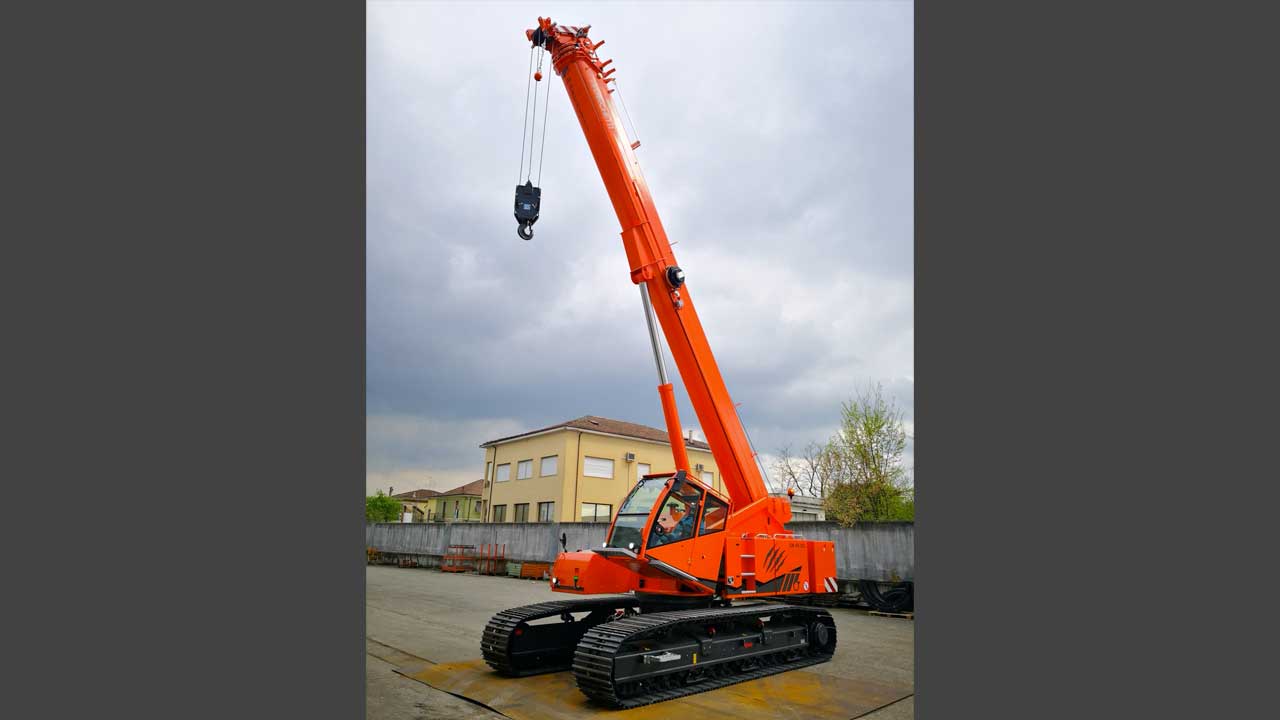

Marchetti Autogru Crawler crane CW 45.32L
MAX CAPACITY:
 45 ton
Telescopic boom length : 10 to 32m
Max height from ground: 34.5 m
Max height with jib: 49 m
Diesel engine power: 129 kw
Gross Vehicle Weight: (full configuration) 41000 kg

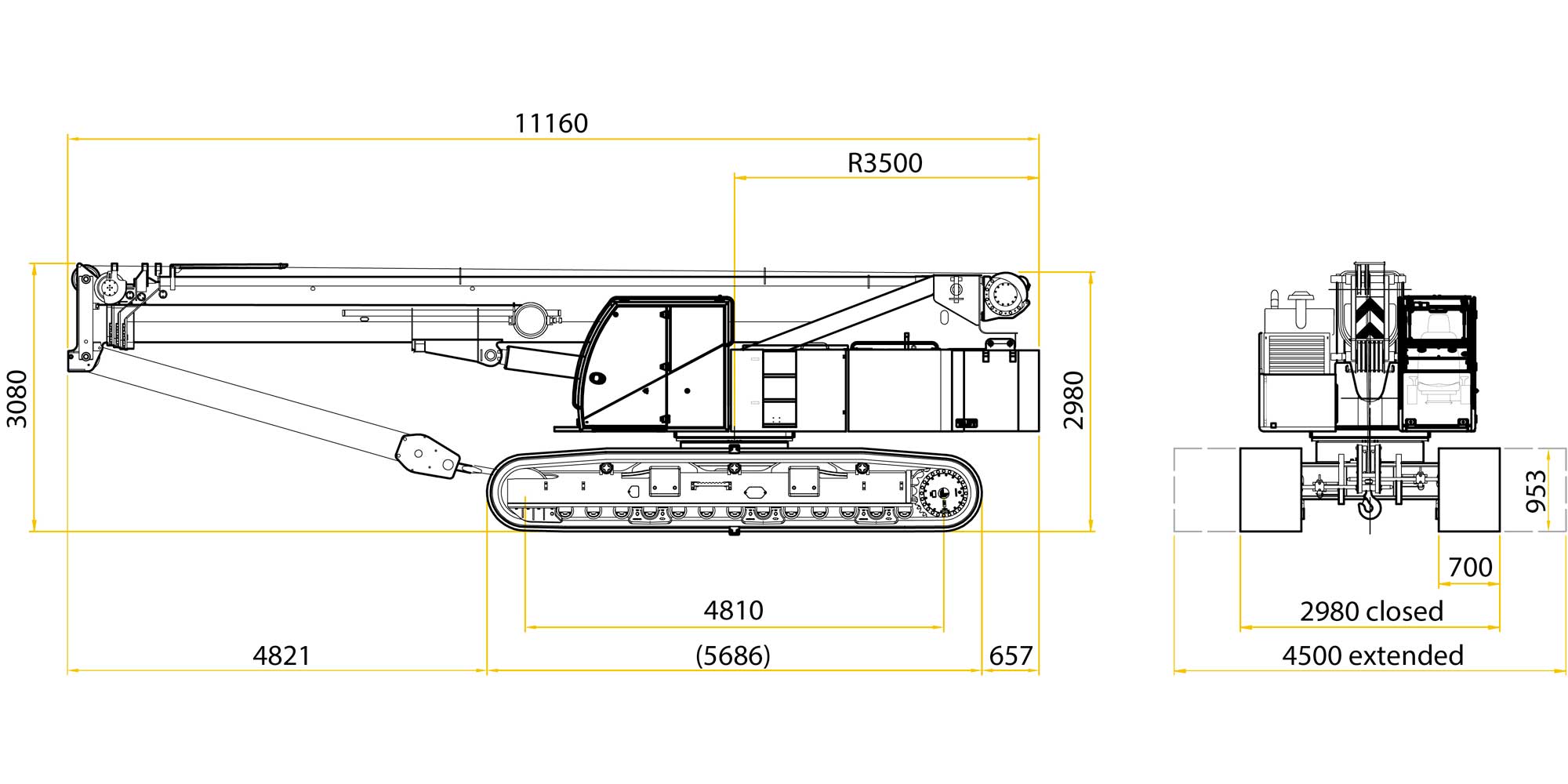

Transport width: (W x L) 2.98 x 11.2m
OPTIONAL:

Flat tracks (rubber/steel):
2nd winch:
Rooster head stowable alongside boom:
8 to 14.5 Swing-away jib stowable alongside boom:
Working Area Limiter:
Remote controller:
Remote access system:
Additional Webasto heater:
Hydraulic Bucket:
MEWP:
Further optional on request:
